- SHIFT UP AND DOWN
- Product Description
- ■ Wire Suspended LED Pendant Luminaire
- ■ Elegant and slim shape
- ■ Aluminum Housing
- ■ Replaceable LED module
- ■ Optical prism high transmittance PMMA
diffusor - ■ 5 year warranty
- Technical Data
- Model
- Shift Up and Down
- IP Rating
- IP20
- Light Source
- SMD LED
- Beam Angle
- 120°
- Input Voltage / Power
- 120 - 240V AC / 30 - 60W
- Dimming
- 1-10V, Switch Dim and DALI
- Power Factor
- 0.90
- Operating Temperature
- -20°C to +50°C (-4°F to +122°F)
- CRI / SDCM
- 95+ / 3-
- Dimensions
- L x 40mm x 140mm ( H3: 3000mm)
- Lifetime L90 / B10
- 60,000 hours
- L x 1.57" x 5.51" ( H3: 118.11")
- Model
- 01056014
- 01059014
- 01051214
- 01051514
- Wattage
- 2 x 15W
- 2 x 20W
- 2 x 25W
- 2 x 30W
- Lumens
- 3000K
- 4000K
- 2,100
- 2,400
- 2,800
- 3,200
- 3,500
- 4,000
- 4,200
- 4,800
- Weight
- kg [lbs]
- 2.8 [6.2]
- 3.4 [7.5]
- 4.0 [8.8]
- 4.6 [10.1]
- * L, Length
- mm [inch]
- 633 [24.92]
- 933 [36.73]
- 1233 [48.54]
- 1533 [60.35]
- * Custom lengths are available on request

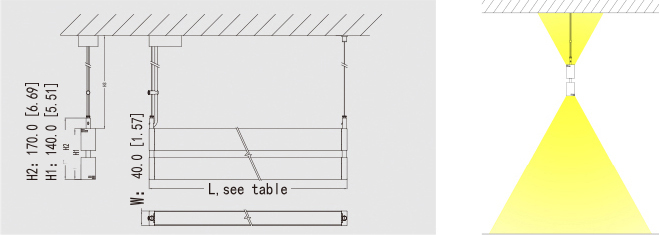

- Dimensions
- Dimension in millimetres [inches in brackets] Tolerance: ±1mm [0.04"]
- Ordering Details
- Model
- 01 - Shift
- Type
- 05 - Up and Down
- Size -
- 6014 -
L: 633mm [24.92”]
H: 140mm [5.51”] - 9014 -
L: 933mm [36.73”]
H: 140mm [5.51”] - 1214 -
L: 1233mm [48.54”]
H: 140mm [5.51”] - 1514 -
L: 1533mm [60.35”]
H: 140mm [5.51”]
- Finish
- 1 - Silver
2 - White
3 - Black
- CCT
- 2 - 3000K
4 - 4000K
- Dimming
- 0 - Non-dimmable
- 1 - 1-10V Dimmable + Switch DIM
- 2 - DALI Dimmable
