- SHIFT SQUARE
- Product Description
- ■ Wire Suspended LED Pendant Luminaire
- ■ Elegant and slim shape
- ■ Aluminum Housing
- ■ Replaceable LED module
- ■ Optical prism high transmittance PMMA
diffusor - ■ 5 year warranty
- Technical Data
- Model
- Shift Square
- IP Rating
- IP20
- Light Source
- SMD LED
- Beam Angle
- 120°
- Input Voltage / Power
- 120 - 240V AC / 60 - 120W
- Dimming
- 11-10V, Switch Dim and DALI
- Power Factor
- 0.90
- Operating Temperature
- -20°C to +50°C (-4°F to +122°F)
- CRI / SDCM
- 95+ / 3-
- Dimensions
- L x 40mm x 100mm ( H3: 3000mm)
- Lifetime L90 / B10
- 60,000 hours
- L x 1.57" x 3.94” (H3: 118.11")
- Model
- 01106010
- 01109010
- 01101210
- 01101510
- Wattage
- 4 x 15W
- 4 x 20W
- 4 x 25W
- 4 x 30W
- Lumens
- 3000K
- 4000K
- 4,200
- 4,800
- 5,600
- 6,400
- 7,000
- 8,000
- 8,400
- 9,600
- Weight
- kg [lbs]
- 5.6 [12.3]
- 6.8 [15.0]
- 8.0 [17.6]
- 9.2 [20.2]
- * L, Length
- mm [inch]
- 723 [28.46]
- 1023 [40.28]
- 1323 [52.09]
- 1623 [63.90]
- * Custom lengths are available on request

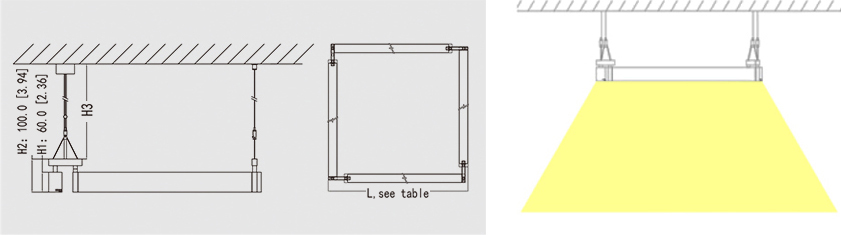

- Dimensions
- Dimension in millimetres [inches in brackets] Tolerance: ±1mm [0.04"]
- Ordering Details
- Model
- 01 - Shift
- Type
- 10 - Square
- Size -
- 6010 -
L: 723mm [28.46”]
H: 100mm [3.94”] - 9010 -
L: 1023mm [40.28”]
H: 100mm [3.94”] - 1210 -
L: 1323mm [52.09”]
H: 100mm [3.94”] - 1510 -
L: 1623mm [63.90”]
H: 100mm [3.94”]
- Finish
- 1 - Silver
2 - White
3 - Black
- CCT
- 2 - 3000K
4 - 4000K
- Dimming
- 0 - Non-dimmable
- 1 - 1-10V Dimmable + Switch DIM
- 2 - DALI Dimmable
