- SENSOR + RF WIRELESS
- Product Description
- ■ Slim LED Ceiling and Wall Mounted Luminaire
- ■ Elegant and slim shape
- ■ Tool-less lumen output adjustability
- ■ Aluminum Housing
- ■ 5 year warranty
- Technical Data
- Model
- Romeo Sensor + RF Wireless
- IP Rating
- IP65 Ceiling Mounted
- Light Source
- SMD LED
- Beam Angle
- 120°
- Input Voltage / Power
- 120 - 240V AC / 16 - 29W
- Dimming
- 1-10V, Switch Dim and Dali
- Power Factor
- 0.95
- Operating Temperature
- -20°C to +50°C (-4°F to +122°F)
- CRI / SDCM
- 90+ / 3-
- Dimension
- Ø320mm x 38mm
- Lifetime L90 / B10
- 60,000 Hours
- Ø12.60” x 1.50”
- Model
- 03053238
- Wattage
- Max.
- 29
- Lumens
- 3000K
- 4000K
- 1,960
- 2,240
- Version
- Motion & Daylight Sensor + RF Wireless
- Weight
- Kg [lbs]
- 1.9 [4.2]

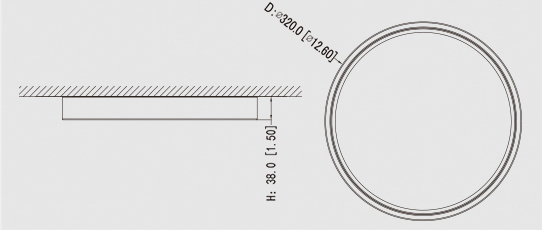

- Dimensions
- Dimension in millimetres [inches in brackets] Tolerance: ±1mm [0.04"]
- Ordering Details
- Model
- 03 - Romeo
- Type
- 05 - Motion & Daylight Sensor + RF Wireless
- Size -
- 3238 -
D: 320mm [12.60”]
H: 38mm [1.50”]
- Finish
- 1 - Silver
2 - White
- CCT
- 2 - 3000K
4 - 4000K
- Dimming
- 0 - Non-dimmable
- 1 - 1-10V Dimmable + Switch DIM
- 2 - DALI Dimmable
